Technical parameters:
| Length | 800MM |
| Width | 800MM |
| Height | 1850MM |
| Weight | 400KG |
| Average Electrical Consumption | 105KW |
| Air Consumption | 100NL/Min |
| Output | 1200-2200Pairs/8H |
Main Functions & Features:

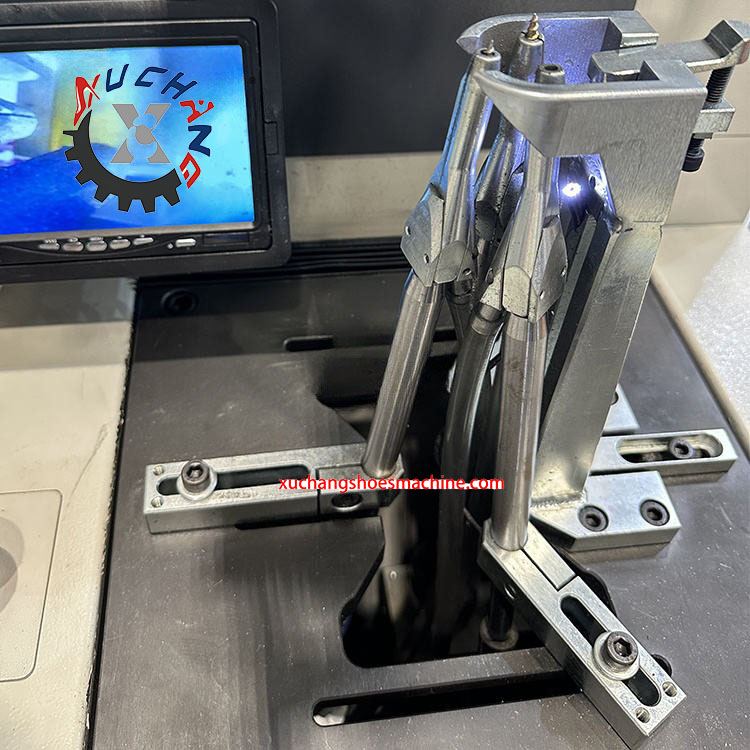

1. Screw fixing by servo motors, while its torsion & speed can be adjusted precisely according to the request.2. Precise Screw Fixing: The machine can put 3screws altogether. The shoe is fixed by a mould, to avoid any shakingduring operation and assure that the screw can be precisely put in the heel;

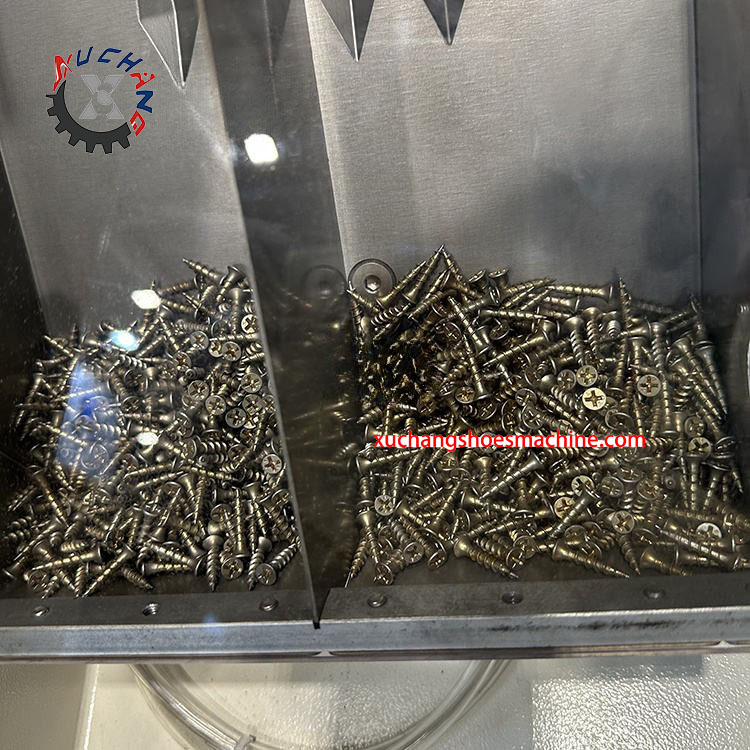

3.Automatic Screw Feeding/ Dispatching: With the screw loader, the screw can be automatically dispatched, feed
and fixed in the heel;
4. Saving Labors: No need to punch holes on insole, can directly put screws in the heel, based on the output, cansave 1-2 workers;
5. Saving Materials: With this machine, heel break is much less comparing to manual m/c, thus no waste of heels;6. Saving Consumption Material: The m/c is with screw driver protecting system, while with manual m/c, the screwdriver is easily/frequently broken;
7. More Stable Heel Fixing: The m/c is turning the screw in the heel by one cylinder, while its pressure and torsioncan both be adjusted. The head inclination can be adjusted based on different heel size too; thus the screw can bemore stably fixed on the heel;

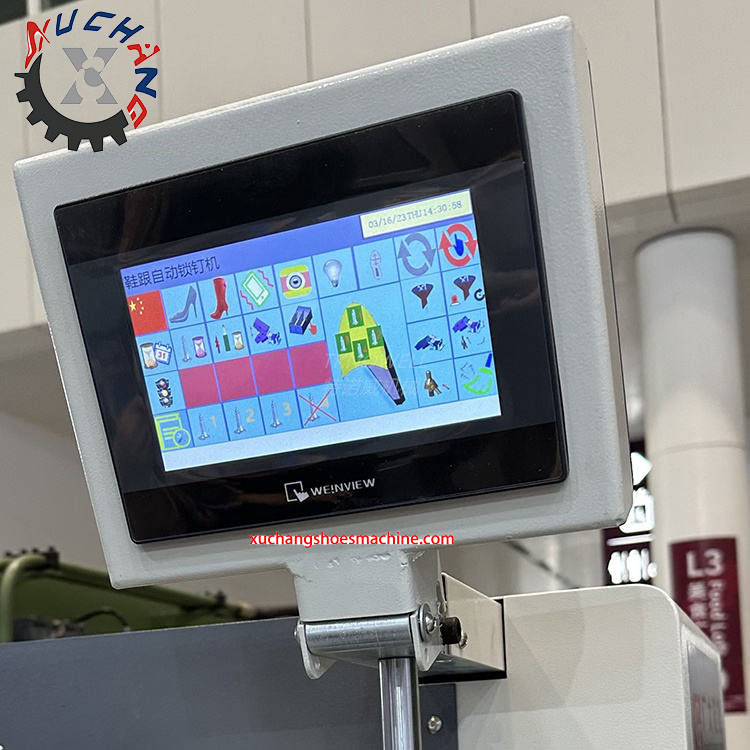

8. Easy Operation: Can close any screw you want, and the screw sequence can also be set based on request.
9.Decreasing the Operator’s Workload: Easy operation, convenient adjustment, low noise, greatly decreased the
operator’s workload;10.Optional: Use 2 different size screws simultaneously.
