Automatic High Speed Snap Riveting Button Fastener Attaching Plastic Snap Button Machine XC-724

Equipment Features, Functions, and Specifications

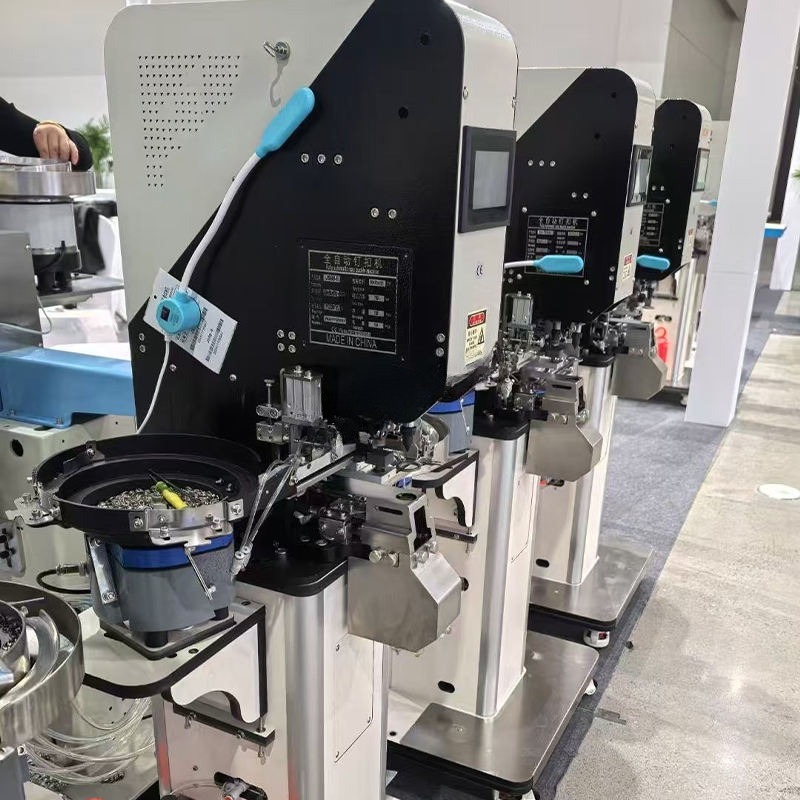

The machine adopts a computerized control system with an embedded control panel, allowing parameters to be set quickly and operations to be performed efficiently through the HMI interface.

The machine supports simultaneous upper and lower snap feeding. It can be adjusted according to different snap shapes, sizes, and thicknesses to achieve automatic feeding and attaching functions.

The machine is equipped with an infrared-assisted positioning system to ensure accurate snap-attaching alignment.

The machine is fully covered with a protective housing that safeguards internal mechanisms and enhances operator safety. Additional protective covers are installed at the snap-feeding section to further improve operational safety.

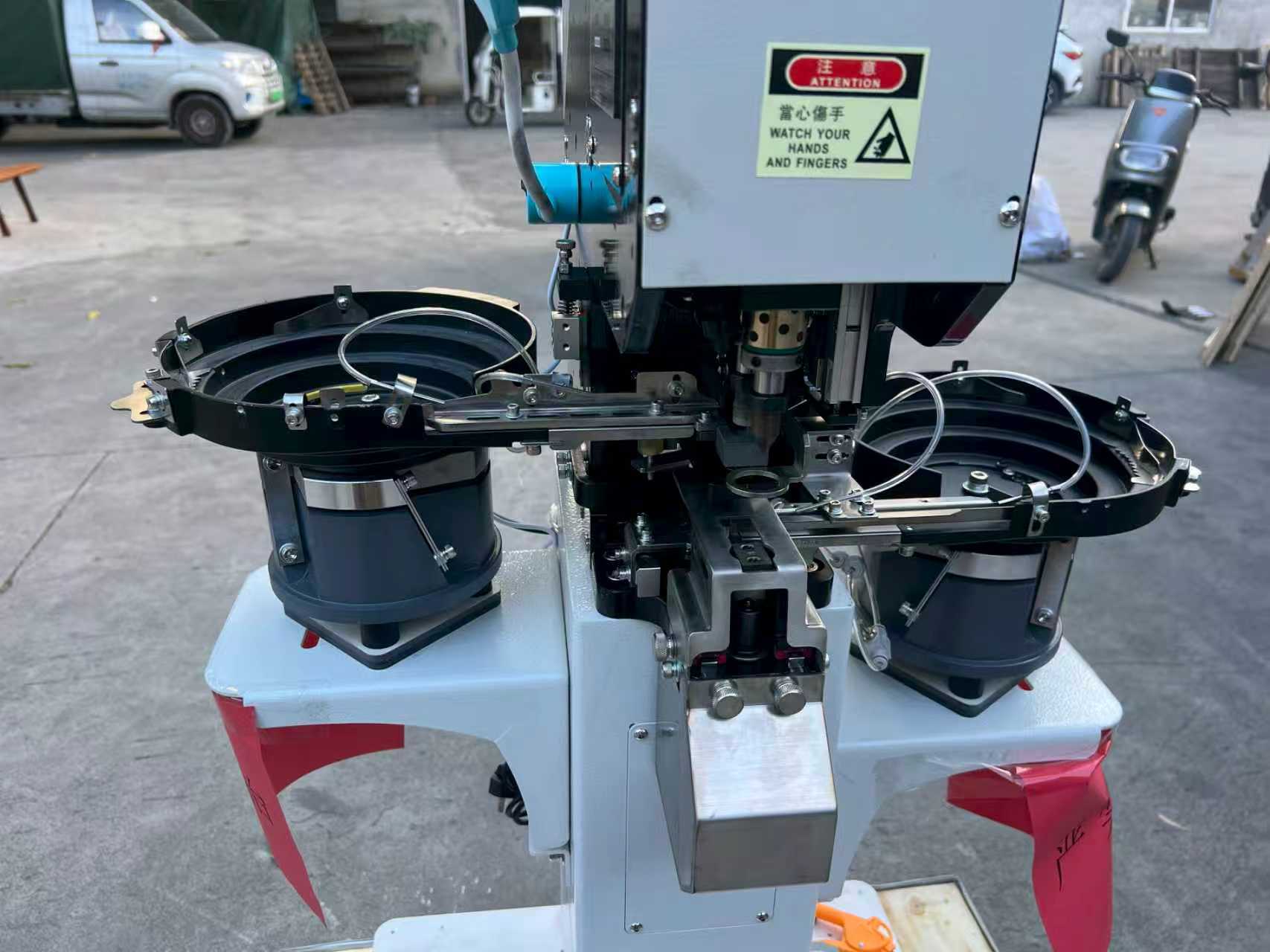

The upper and lower snap feeding units both use rotary disc-type automatic feeding systems capable of filtering out defective snaps.

The upper snap gripping mechanism adopts a direct-push feeding method, and the attaching pressure can be adjusted according to different snap-attaching requirements.

The punching head and riveting head are arranged in a straight-line configuration, ensuring precise positioning during operation.

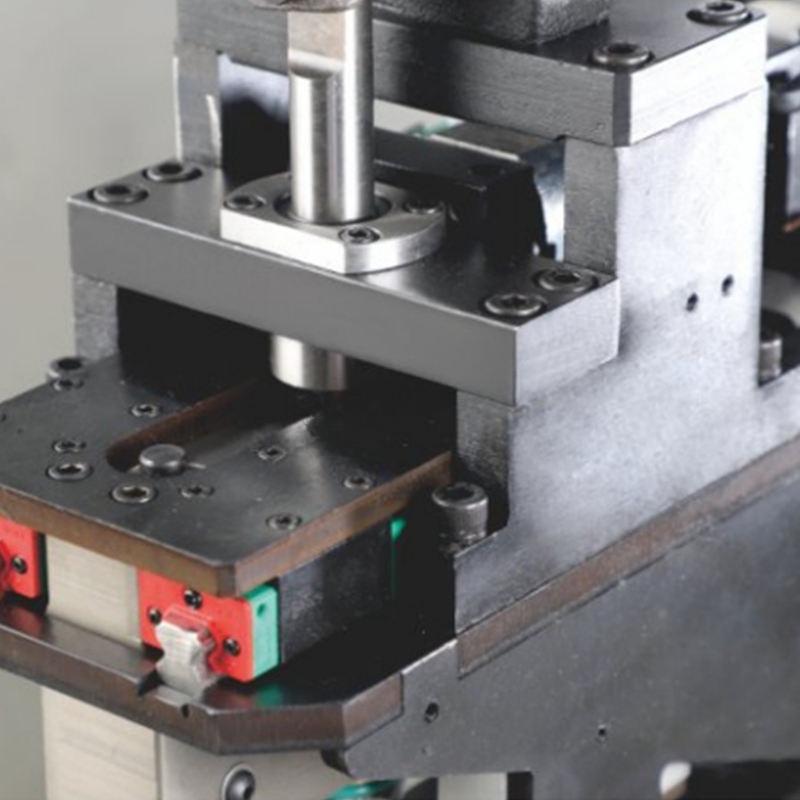

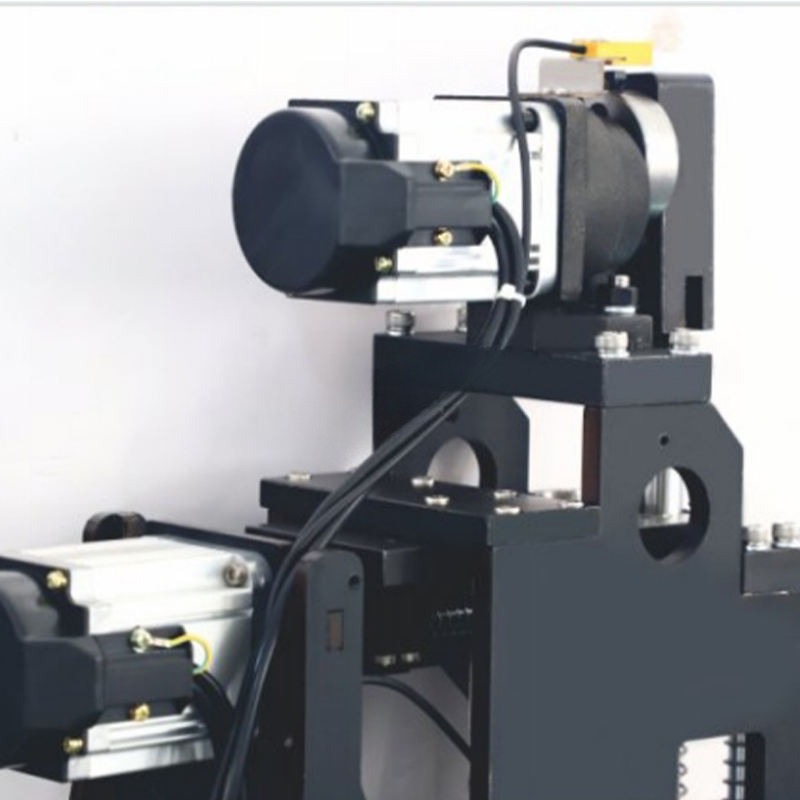

The snap-attaching mechanism uses a screw-driven linear slide instead of a traditional air cylinder, providing smoother and more accurate motion.

The adjustment mechanism for the snap feeding tracks (upper and lower) adopts a simple slot-locking design, making it easy to operate.

The machine uses pneumatic or electric riveting for snap fastening, and the pneumatic system includes an automatic water-draining function.
