This machine is widely used in industries such as shoemaking, leather goods, luggage, furniture,automotive interiors, gift packaging,etc.forgenuine leather, leather PVC、PET、EVA、High precision scraping, layering, andoperation in materials industries such asmicrofiber and rubber. Adjustable bladecutting thickness improves product qualityenhances and market competitiveness.
Features
- Touch screen operating system, controlled by PLC program:
- Automatic shutdown alarm device for waste entanglement;
- Automatic feed positioning system:
- Automatic belt cutter guide plate system;
- Independent waste suction device with independent control module,
- Independent blade grinding dust suction device with independent control module;

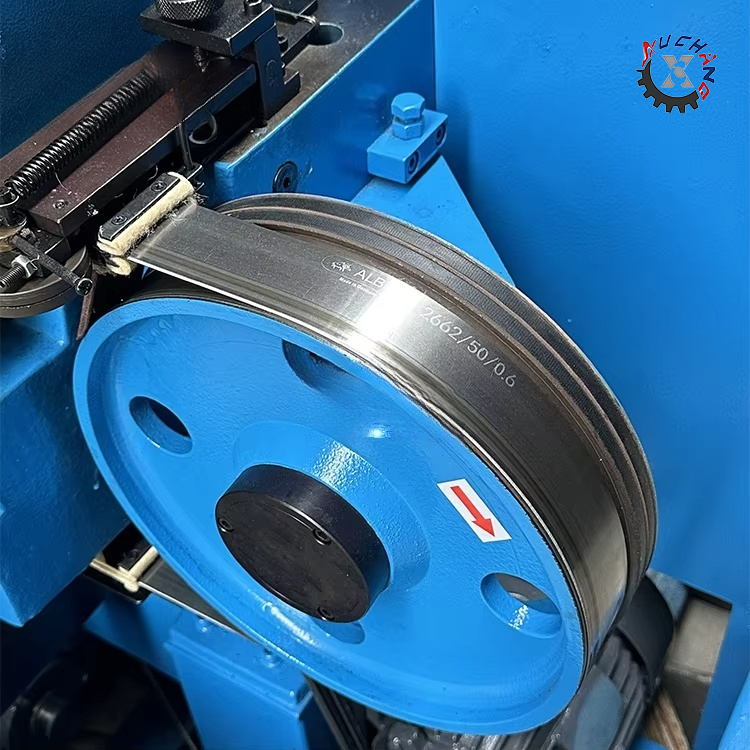

- 500mm diameter enlarged flywheel for smoother and more accurate operation with knives;
- Use a 3570 meter extended blade strap for durability;
- The working pressure has been upgraded from 4th gear adjustment to arbitrary adjustment,
- The feeding speed adopts stepless speed regulation:
- Reverse mode, adjustable automatically or manually
- data storage and retrieval functions, electronic memory can store hundreds of sets of data:
- Electronic phase automatic detection;
- Safety protection device for the operating platform;
- The encoder accurately exports thickness display data, and the debugging data is operated by the touch screen
- Fault alarm system with fault reset and fault record storage functions, real-time monitoring of machine operation

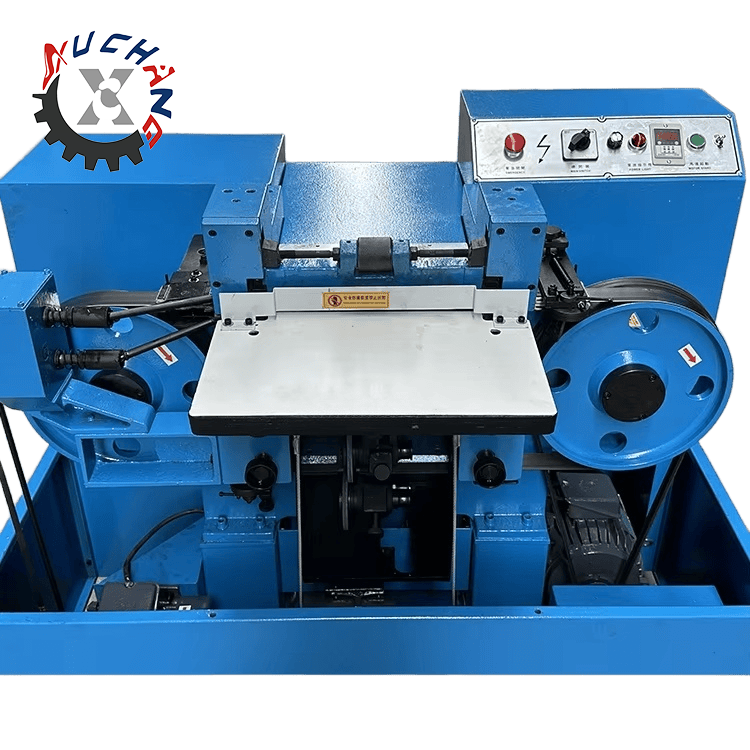

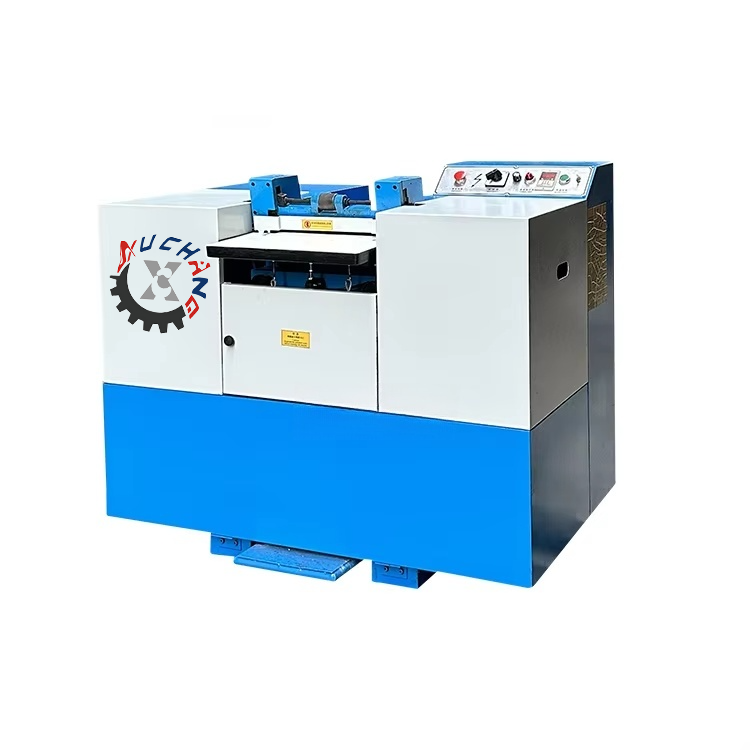

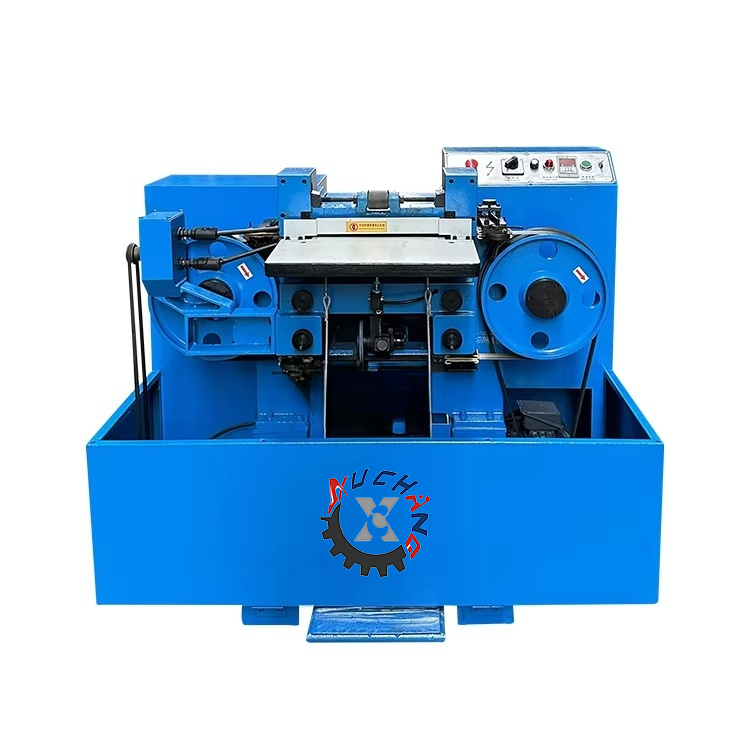

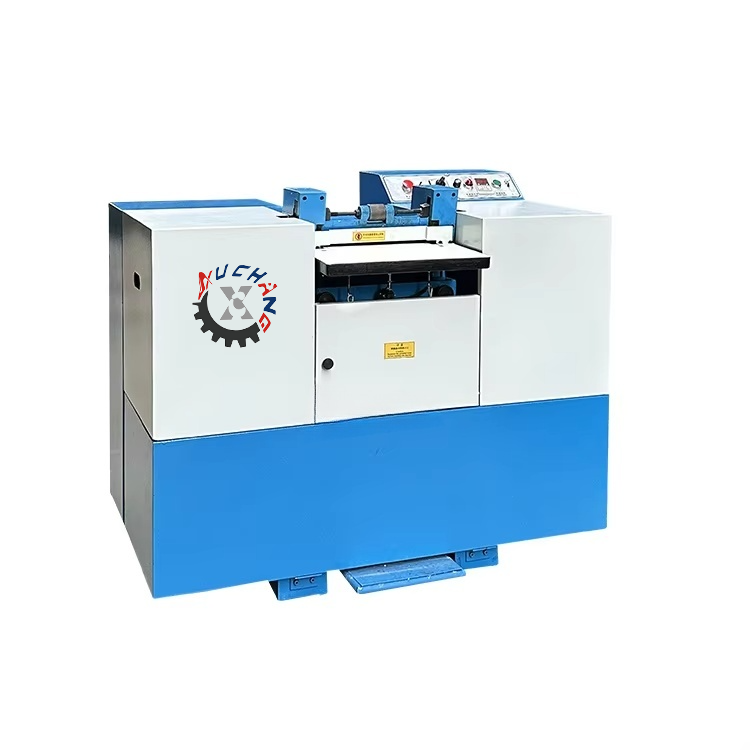

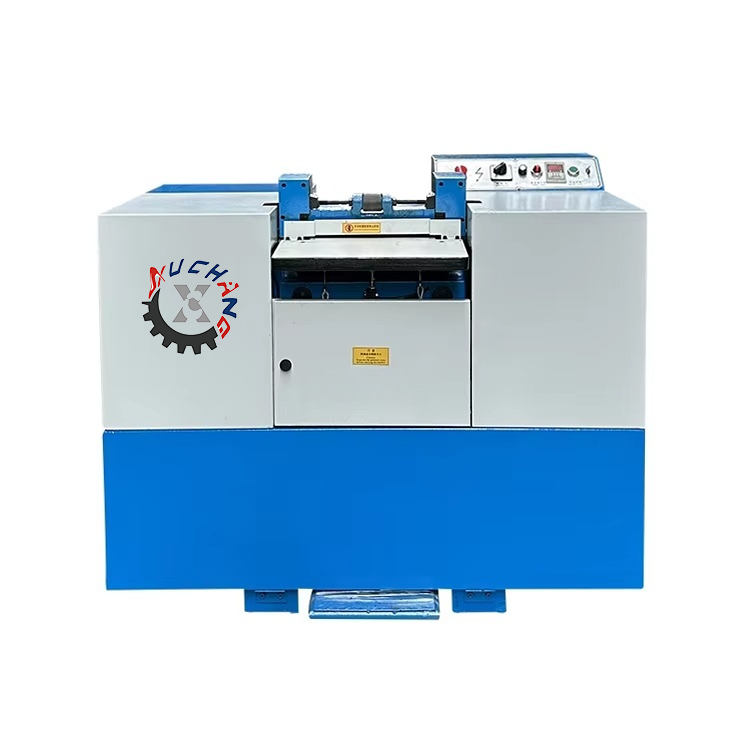

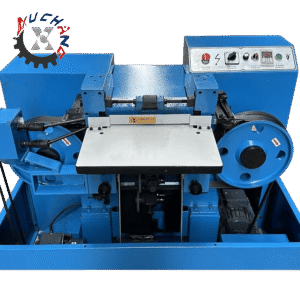

| Product Name | XC-320 Leather Splitter Splitting Machine |
| Voltage | 380V |
| N.W. | 450KGS |
| G.W. | 550KGS |
| Machine Size | 1320*1000*1100mm |
| Packing Size | 1450*1200*1250mm |
| Working width | 320MM |
| Minimum thickness | 0.2mm |
| Maximum thickness | 8mm |
